SEMI-AUTOMATIC HORIZONTAL BALER

NK-6000Built for your
working day.

100-ton compaction with configurable material settings.

Industrial recycling and distribution.

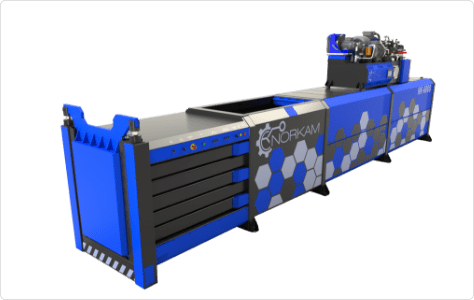

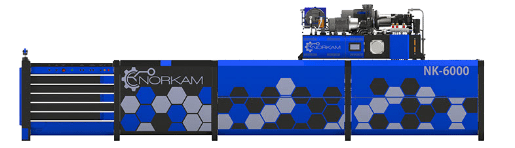

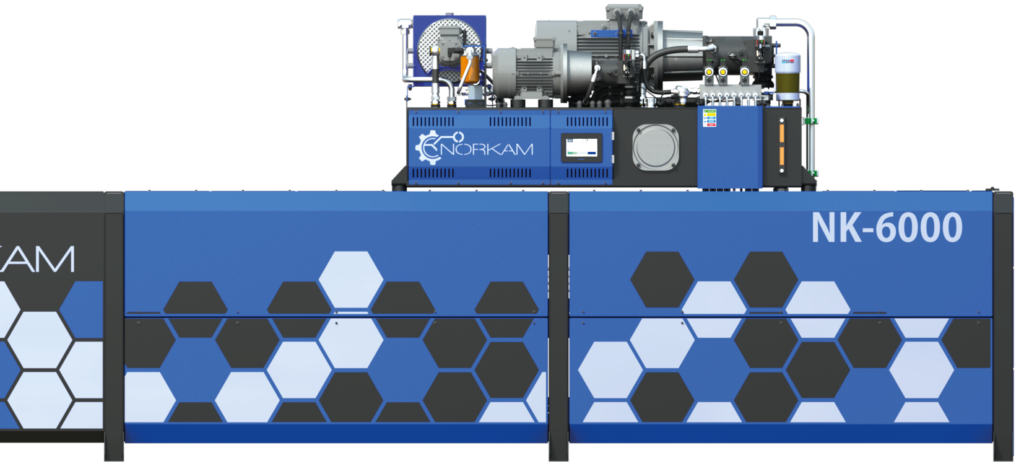

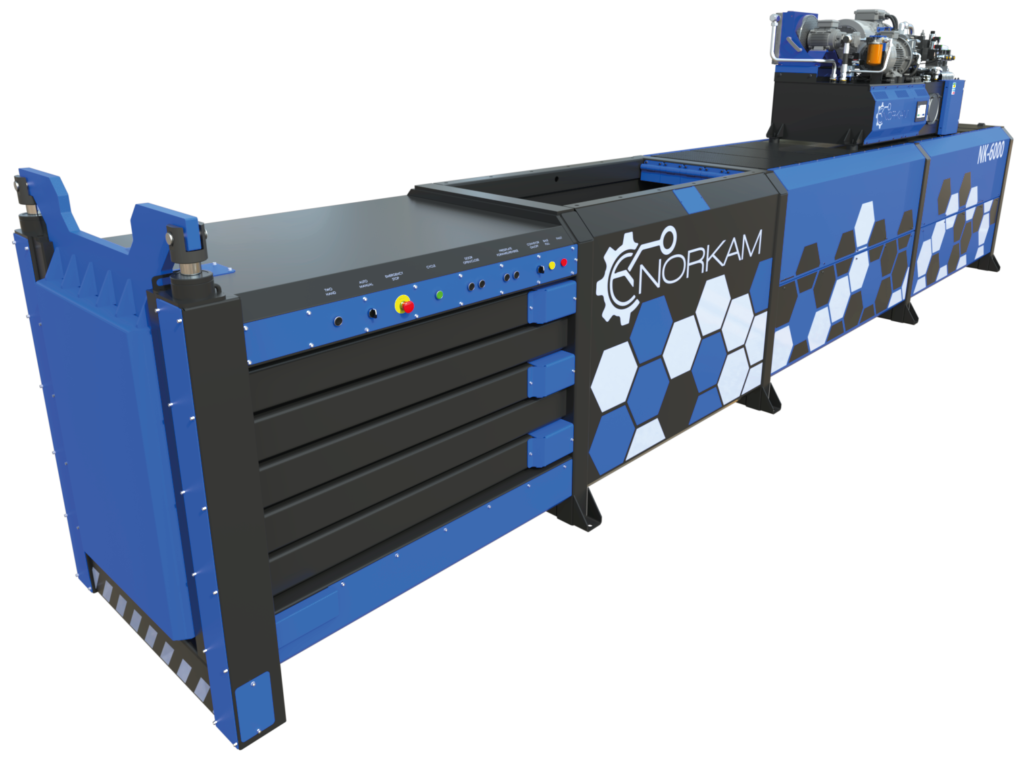

NORKAM NK-6000 horizontal recycling baler — original manufacturer visualNORKAM / NK-6000
Compaction force100 tons
Motor power22 + 5.5 kW
Cardboard bale*600 kg

DESIGNED FOR THE TASK

Practical engineering.
Purposeful features.

  • Hardox chamber floor
  • 6 retention claws
  • Steel roller press plate guides
  • Replaceable shear blades

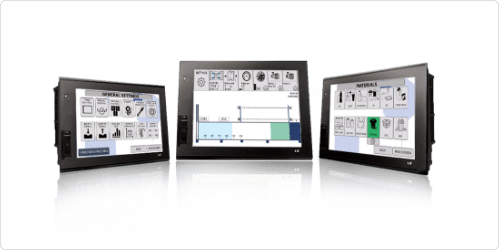

  • 7-inch HMI touchscreen

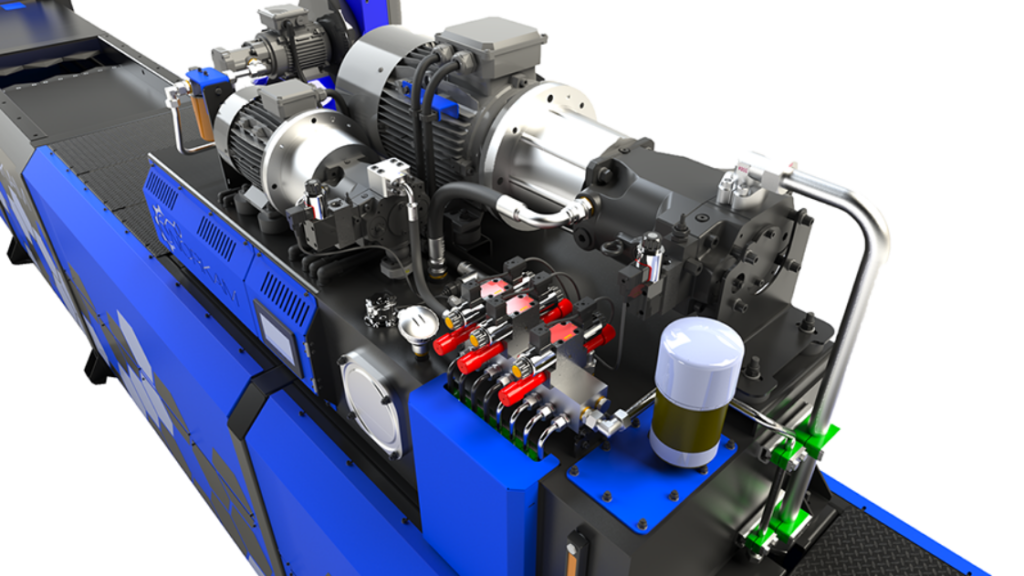

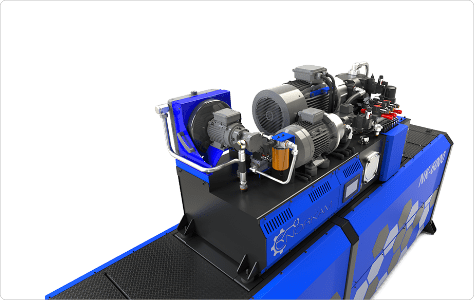

  • Oil cooler and offline filtration

Materials handled

CardboardPaperPlastic filmPET bottlesDrinks cans

Confirm your material and its preparation with NORKAM before specifying the machine.

Technical specifications

Compaction force
100 tons
Motor power
22 + 5.5 kW
Electrical supply
3 × 415 V / 50 Hz
Cycle time
26 s
Cardboard bale weight
600 kg
Machine weight
8500 kg
Bale (L × W × H)
300–1500 × 750 × 1030 mm
Pump flow
217 L/min
Working pressure
295 bar
Tying system
6 horizontal wire ties

*Published cardboard-specific bale weight. Actual weight depends on material and operating conditions. Confirm the final specification, access and electrical requirements for your installation.

Discuss this specification

Questions about the NK-6000

What power supply does the NK-6000 use?

NK-6000 is listed with 3 × 415 V, 50 Hz. Ask NORKAM to confirm the site requirements for your configuration.

What cardboard bale weight is listed for this model?

The published cardboard bale weight for the NK-6000 is 600 kg. Material and operating conditions affect the actual weight.
